Right-angle, 6-position, 6-contact female modular connector with SMT termination. Features bronze contacts with gold plating, a 1.5A current rating, and a 150V AC voltage rating. Operating temperature range is -40°C to 70°C. Housing is black, UL94 V-0 flammability rated, and the component is RoHS compliant. Supplied in tray packaging.
Voltage Rating150V
Current Rating1.5A
MountingRIGHT ANGLE
Quick Jump:
Technical Specifications
TE Connectivity 5557314-1 technical specifications.
General
| Body/Shell Style | JACK |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Gold |
| Current Rating | 1.5A |
| Depth | 20.83mm |
| Direction | Down |
| Element Configuration | Single |
| Empty Shell | No |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Keyed | No |
| Length | 13.34mm |
| Manufacturer Series | 5557314 |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 150V |
| Mixed Contacts | No |
| Mounting Style | RIGHT ANGLE |
| Number of Contacts | 6 |
| Number of Ports | 1 |
| Number of Positions | 6 |
| Number of Positions Loaded | 6 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 168 |
| Packaging | Tray |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57mm |
| Pitch | 1.27mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Shielding | Unshielded |
| Termination | SMD/SMT |
| Voltage Rating | 150V |
| Width | 12.7mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5557314-1 Datasheet
Download the complete datasheet for TE Connectivity 5557314-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

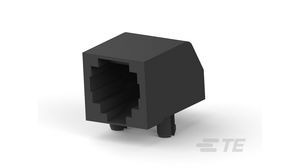

Product Images
