5650090-6

Datasheet

60 Pos 2 Row .050" Pitch Female Header, Through Hole, 1A, 203V

TE Connectivity

5650090-6

Name: 5650090-6 TE Connectivity
Brand: TE Connectivity
SKU: 5650090-6

Active

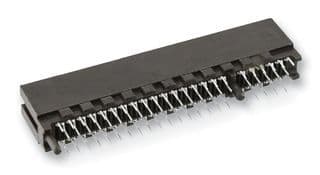

60 Pos 2 Row .050" Pitch Female Header, Through Hole, 1A, 203V

60-position, 2-row female header assembly with a 0.05-inch pitch, designed for board-to-board connectivity. Features gold-plated bronze contacts with a 1A current rating and 0.76µm plating thickness, suitable for 1.78mm card thickness. Through-hole mounting with vertical PCB orientation, offering mating alignment and PCB mount retention. Operates within a -55°C to 85°C temperature range, with a maximum AC voltage rating of 203V. Housing and insulation are thermoplastic and brown, with solder termination.

MountingThrough Hole

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Card Thickness	1.78mm
Color	Brown
Connector System	Board-to-Board
Contact Current Rating	1A
Contact Material	Bronze
Contact Plating	Gold, Tin, Lead, Bright
Contact Post Length	0.1inch
Gender	Female
Height	0.55inch
Housing Color	Brown
Insulation Material	Thermoplastic
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	85°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	203V
Mount	Through Hole
Number of Contacts	60
Number of Positions	60
Number of Rows	2
Orientation	Straight
Package Quantity	35
Packaging	Box
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Vertical
Pitch	0.05inch
Plating Thickness	0.76um
Radiation Hardening	No
RoHS Compliant	Yes
Selectively Loaded	No (Without)
Series	Standard Edge .050
Termination	Solder
Underplate Material	Nickel
