TE CONNECTIVITY

5650858-5

Datasheet

32 Pos 2.54mm DIN 41612 Receptacle, Straight, Thru-Hole, Signal

TE Connectivity

5650858-5

Name: 5650858-5 TE Connectivity
Brand: TE Connectivity
SKU: 5650858-5

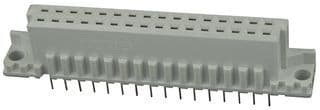

32 Pos 2.54mm DIN 41612 Receptacle, Straight, Thru-Hole, Signal

32-position, 2-row straight receptacle backplane connector with 2.54mm pitch for signal applications. Features copper alloy contacts with gold and tin plating, a 1.5A current rating, and a 250V voltage rating. The grey polymer housing offers UL94 V-0 flammability and operates within a -67°C to 221°C temperature range. Designed for through-hole mounting on PCBs up to 0.062 inches thick, this Eurocard series connector is RoHS compliant.

Voltage Rating250V

Current Rating1.5A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5650858-5 technical specifications.

General

Circuit Application	Signal
Color	Grey
Connector System	Board-to-Board
Contact Current Rating	1.5A
Contact Material	Copper Alloy
Contact Plating	Gold, Tin
Contact Post Length	4.57mm
Current Rating	1.5A
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	11.5mm
Housing Color	Grey
Insulation Material	Polymer
Lead Free	Lead Free
Length	2.1inch
Mating Alignment	Yes (With)
Mating Retention	No (Without)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Columns	16
Number of Contacts	32
Number of Positions	32
Number of Rows	2
Number of Signal Positions	32
Operating Supply Voltage	250V
Orientation	Straight
Package Quantity	40
Packaging	Tray
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	0.062inch
Pitch	2.54mm
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.1inch
Sealable	No (Without)
Series	Eurocard
Tail Length	0.18inch
Termination	Solder
Underplate Material	Nickel
Voltage Rating	250V
DC Rated Voltage	250V
Width	0.317inch
