Shielded straight backshell/cable clamp with 9 positions and 9 contacts. Features a zinc alloy body and shell, with copper plating and nickel over copper zinc alloy finish. Designed for round wire/cable with a diameter of 0.2 inches and an insulation diameter of 5.08mm. Dimensions include a length of 30.86mm, height of 15.74mm, and depth of 48.51mm. This lead-free component is RoHS compliant.
PackageMetal
Quick Jump:
Technical Specifications
TE Connectivity 5745171-2 technical specifications.
General
| Body Material | ZINC ALLOY |
| Package/Case | Metal |
| Color | Silver |
| Depth | 48.51mm |
| Height | 15.74mm |
| Insulation Diameter | 5.08mm |
| Lead Free | Lead Free |
| Length | 30.86mm |
| Material | Metal |
| Number of Contacts | 9 |
| Number of Positions | 9 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bag |
| Plating | Copper |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE |
| Shell Material | ZINC DIE CAST |
| Shell Size | E |
| Shielding | Shielded |
| Wire/Cable Diameter | 0.2inch |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5745171-2 Datasheet
Download the complete datasheet for TE Connectivity 5745171-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

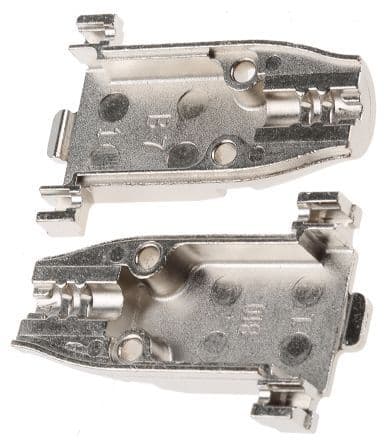

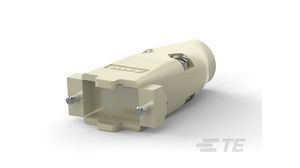

Product Images
