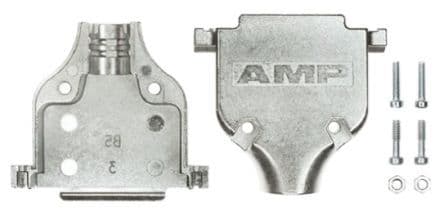

Shielded, straight backshell/cable clamp with a nickel over copper zinc alloy construction, designed for 25 positions and a B shell size. Features a metal body with a silver finish, a mating connector lock, and accommodates round cables with a 0.53-inch diameter. Operating temperature range is -55°C to 105°C, with dimensions of 53.08mm length, 48.76mm depth, and 17.27mm height. This component is RoHS compliant and lead-free.
PackageMetal
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 5745173-1 technical specifications.
General
| Body Material | ZINC ALLOY |
| Package/Case | Metal |
| Color | Silver |
| Depth | 48.76mm |
| ELV | Compliant |
| Height | 17.27mm |
| Lead Free | Lead Free |
| Length | 53.08mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Cable |
| Number of Positions | 25 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bag |
| Plating | Copper |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | AMPLIMITE |
| Shell Finish | Nickel |
| Shell Material | ZINC DIE CAST |
| Shell Size | B |
| Shielding | Shielded |
| Wire/Cable Diameter | 0.53inch |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5745173-1 Datasheet
Download the complete datasheet for TE Connectivity 5745173-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
