Shielded, straight-orientation backshell/cable clamp designed for 50-position connectors. Constructed from durable zinc alloy with nickel over copper plating, this metal accessory features a silver finish and a shell size of D. It accommodates round cable types with a maximum diameter of 11.43mm and operates within a temperature range of -55°C to 105°C. This RoHS compliant component measures 67.16mm in length, 22.86mm in height, and 48.77mm in depth.
PackageMetal
Quick Jump:
Technical Specifications
TE Connectivity 5745175-5 technical specifications.
General
Body Material
ZINC ALLOY
Package/Case
Metal
Color
Silver
Depth
48.77mm
ELV
Compliant
Height
22.86mm
Lead Free
Lead Free
Length
67.16mm
Material
Metal
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Number of Contacts
50
Number of Positions
50
Orientation
Straight
Package Quantity
1
Packaging
Bag
Plating
Copper, Nickel
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE
Shell Size
D
Shielding
Shielded
Wire/Cable Diameter
11.43mm
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5745175-5 Datasheet
Download the complete datasheet for TE Connectivity 5745175-5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

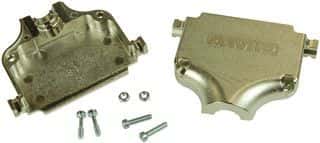

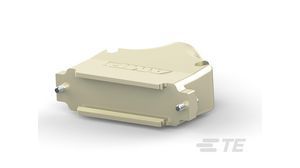

Product Images
