9-position, 2-row D-Subminiature female connector with straight, through-hole mounting for signal applications. Features a metal body and shell, black housing, and bronze contacts with gold and tin plating. Rated for 250V AC/DC, with a maximum operating temperature of 105°C and a flammability rating of UL94 V-0. Compliant with RoHS and ELV standards.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5747190-1 technical specifications.
General
Body Material
Metal
Package/Case
Metal
Circuit Application
Signal
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Square
Contact Type
Signal
Depth
12.55mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Lead Length
3.175mm
Length
30.81mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
9
Number of Ports
1
Number of Positions
9
Number of Rows
2
Orientation
Straight
Package Quantity
17
Packaging
Rail/Tube
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
2.36mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.8448mm
Sealable
No (Without)
Series
AMPLIMITE HDP-20
Shell Material
Steel
Shell Size
1
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5747190-1 Datasheet
Download the complete datasheet for TE Connectivity 5747190-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

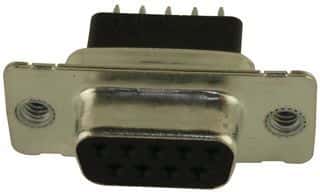

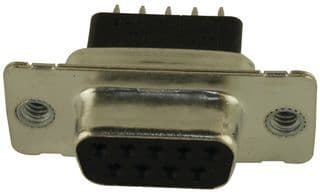

Product Images
