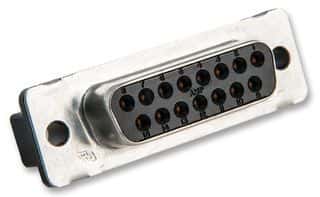

Standard D-Subminiature Connector, female, 15 positions, 2 rows, straight orientation, through-hole mount. Features steel shell, polyester dielectric, and bronze contacts with gold and tin plating. Rated for 250V AC/DC, with a maximum operating temperature of 105°C. Compliant with UL and CSA approvals, RoHS, and UL94 V-0 flammability.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5747299-2 technical specifications.
General
Approvals
UL, CSA
Body Material
Steel
Package/Case
Metal
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
12.55mm
Dielectric Material
Polyester
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
39.12mm
Material
Metal
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
15
Number of Ports
1
Number of Positions
15
Number of Rows
2
Orientation
Straight
Package Quantity
13
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
2.36mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
2
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5747299-2 Datasheet
Download the complete datasheet for TE Connectivity 5747299-2 to view detailed technical specifications.
