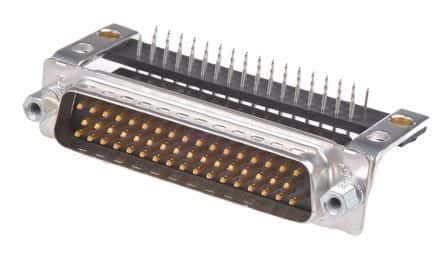

Right-angle, 50-position male D-subminiature connector with brass, gold-plated signal contacts. Features a steel shell, black housing, and through-hole mounting for PCB applications. Rated for 6A current and 125V voltage, with a temperature range of -55°C to 105°C. Compliant with RoHS and UL94 V-0 flammability standards.
PackageMetal
Voltage Rating125V
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5747497-4 technical specifications.
General
Approvals
UL
Body Material
Metal, Steel
Package/Case
Metal
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Square
Contact Type
Signal
Current Rating
6A
Depth
1.149inch
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Length
66.92mm
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
50
Number of Ports
1
Number of Positions
50
Number of Rows
3
Orientation
Right Angle
Package Quantity
7
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
2.36mm
Pitch
0.108inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
D
Termination
Solder
Voltage Rating
125V
Width
0.605inch
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5747497-4 Datasheet
Download the complete datasheet for TE Connectivity 5747497-4 to view detailed technical specifications.
