5747841-3

Datasheet

15 Pos Male D-Sub Connector, Right Angle, Signal, Gold/Tin Plated

TE Connectivity

5747841-3

Name: 5747841-3 TE Connectivity
Brand: TE Connectivity
SKU: 5747841-3

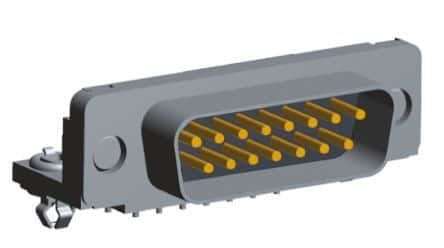

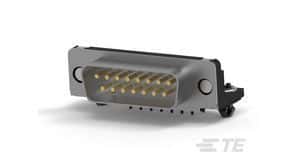

15 Pos Male D-Sub Connector, Right Angle, Signal, Gold/Tin Plated

15-position, right-angle D-Subminiature plug connector for signal applications. Features brass contacts with gold and tin plating, a metal shell, and a black housing. Rated for 6A contact current and 125V voltage, with a maximum operating temperature of 221°C. Designed for through-hole mounting with a pitch of 0.108 inches and includes mating retention and PCB mount retention.

PackageMetal

Voltage Rating125V

MountingThrough Hole

Quick Jump:

Chat with Datasheet

Technical Specifications

TE Connectivity 5747841-3 technical specifications.

General

Approvals	UL
Body Material	Metal
Package/Case	Metal
Circuit Application	Signal
Color	Black
Connector System	Board-to-Board
Contact Current Rating	6A
Contact Gender	Male
Contact Material	Brass
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Shape	Round
Contact Type	Signal
Depth	18.62mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Lead Free	Lead Free
Length	39.14mm
Material	Metal
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Mount	Through Hole
Number of Contacts	15
Number of Ports	1
Number of Positions	15
Number of Rows	2
Orientation	Right Angle
Package Quantity	104
Packaging	Rail/Tube
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Thickness	1.57mm
Pitch	0.108inch
Plating	Tin
Preloaded	Yes
Radiation Hardening	No
RoHS Compliant	No
Row Spacing	2.84mm
Sealable	No (Without)
Series	AMPLIMITE HD-20
Shell Material	Steel
Shell Size	A
Termination	Solder
Voltage Rating	125V
Width	18.62mm
