25 Pos D-Sub RA Solder Male Connector, Gold/Tin, 6A, 125V

TE Connectivity

5747842-4

Name: 5747842-4 TE Connectivity
Brand: TE Connectivity
SKU: 5747842-4

25 Pos D-Sub RA Solder Male Connector, Gold/Tin, 6A, 125V

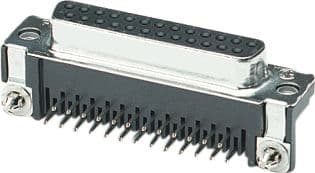

25-position, 2-row right-angle D-subminiature connector with male pin contacts. Features brass contacts with gold and tin plating, a 6A current rating, and 125V voltage rating. Designed for through-hole mounting with a 1.38mm pitch and 2.77mm contact pitch. Includes mating connector and PCB retention features, with a metal shell and black housing. Rated UL94 V-0 for flammability and operates between -55°C and 105°C.

PackageMetal

Voltage Rating125V

Current Rating6A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 5747842-4 technical specifications.

General

Approvals	UL, CSA
Body Material	Metal
Package/Case	Metal
Color	Black
Contact Gender	Male
Contact Material	Brass
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Shape	Round
Contact Type	Signal
Current Rating	6A
Depth	18.75mm
Flammability Rating	UL94 V-0
Gender	Male
Housing Color	Black
Length	53.04mm
Material	Metal
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Mount	Through Hole
Number of Contacts	25
Number of Ports	1
Number of Positions	25
Number of Rows	2
Orientation	Right Angle
Package Quantity	65
Packaging	Tray
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	2.77mm
Plating	Tin
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HD-20
Shell Material	Steel
Shell Size	3
Termination	Solder
Voltage Rating	125V
Width	12.55mm
