25-position, right-angle D-Subminiature receptacle connector with female signal contacts. Features tin-plated steel shell and housing, bronze contacts with gold and tin plating, and a thermoplastic dielectric. Rated for 125V, operating temperature range of -55°C to 105°C, and UL94 V-0 flammability. Through-hole mounting with mating connector and PCB retention.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5747846-6 technical specifications.
General
Approvals
UL, CSA
Body Material
Metal, Steel
Body Plating
Tin
Package/Case
Metal
Color
Black
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
18.79mm
Dielectric Material
Thermoplastic
Flammability Rating
UL94 V-0
Gender
Female
Height
12.54mm
Housing Color
Black
Length
53.03mm
Material
Metal
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Right Angle
Package Quantity
65
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
0.109inch
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
3
Termination
Solder
Voltage Rating
125V
Width
12.54mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5747846-6 Datasheet
Download the complete datasheet for TE Connectivity 5747846-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

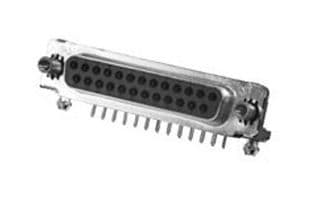

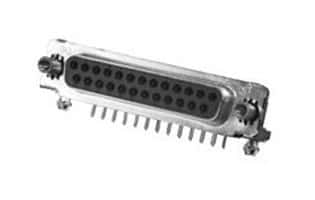

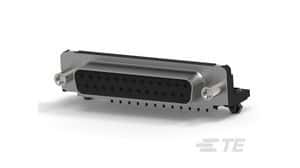

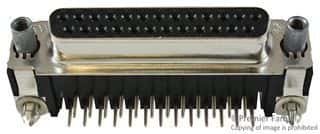

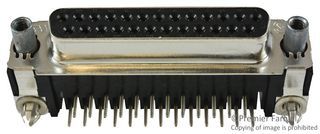

Product Images
