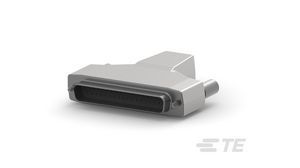

37-position, 2-row D-Subminiature connector with male pin contacts for signal applications. Features a straight, cable mount orientation with a metal shell and black housing. Rated for 250V AC, operating between -55°C and 105°C, with UL94 V-0 flammability. Includes mating connector lock and shielded design.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 5747958-1 technical specifications.
General
| Approvals | UL |
| Body Material | Metal |
| Package/Case | Metal |
| Color | Black |
| Contact Gender | Male |
| Contact Type | Signal |
| Dielectric Material | Nylon |
| ELV | Compliant |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | Black |
| Lead Free | Lead Free |
| Length | 68.19mm |
| Material | Metal |
| Mating Connector Lock | Yes (With) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Free Hanging |
| Number of Contacts | 37 |
| Number of Positions | 37 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Copper, Tin |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HDP-20 |
| Shell Material | Steel |
| Shell Size | C |
| Shielding | Shielded |
| Termination | Crimp |
| Width | 37.3mm |
| Wire/Cable Diameter | 0.562inch |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5747958-1 Datasheet
Download the complete datasheet for TE Connectivity 5747958-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
