Shielded, straight metal backshell and cable clamp designed for round wire/cable with a diameter of 8.13mm. Constructed from zinc alloy with a bright nickel over copper zinc alloy plating, this component features a shell size E and a 180° orientation. It is compliant with ELV, Lead Free, Reach SVHC, and RoHS standards.
PackageMetal
Quick Jump:
Technical Specifications
TE Connectivity 5748676-1 technical specifications.
General
| Body Material | ZINC ALLOY, Metal |
| Package/Case | Metal |
| Color | Silver |
| Depth | 48.51mm |
| ELV | Compliant |
| Height | 13.97mm |
| Lead Free | Lead Free |
| Length | 30.86mm |
| Material | Metal |
| Number of Positions | 9 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Plating | Copper |
| Reach SVHC Compliant | Yes |
| RoHS Compliant | Yes |
| Series | AMPLIMITE HD-20 |
| Shell Material | ZINC DIE CAST |
| Shell Size | E |
| Shielding | Shielded |
| Width | 68mm |
| Wire/Cable Diameter | 8.13mm |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5748676-1 Datasheet
Download the complete datasheet for TE Connectivity 5748676-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

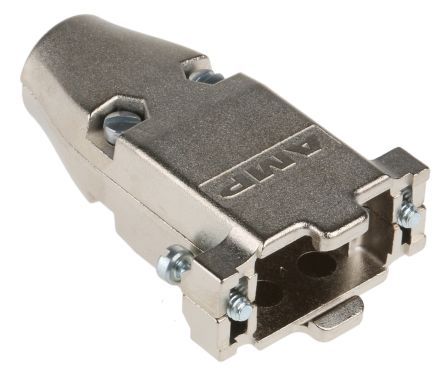

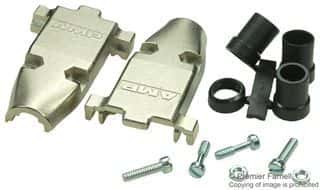

Product Images
