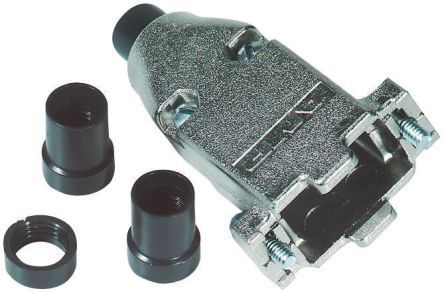

Shielded straight backshell/cable clamp for round cables, featuring a zinc alloy body and die-cast zinc shell with nickel over copper plating. This 180° accessory supports up to 25 positions and accommodates wire/cable diameters up to 11.94mm. Constructed from metal with a silver finish, it measures 53.08mm in length, 17.27mm in height, and 17.27mm in depth. Compliant with RoHS, ELV, and REACH SVHC standards, this component is designed for robust connectivity.
PackageMetal
Quick Jump:
Technical Specifications
TE Connectivity 5748676-3 technical specifications.
General
Body Material
ZINC ALLOY
Package/Case
Metal
Color
Silver
Contact Plating
Copper
Depth
17.27mm
ELV
Compliant
Height
17.27mm
Lead Free
Lead Free
Length
53.08mm
Material
Metal
Number of Positions
25
Orientation
Straight
Package Quantity
1
Packaging
Bulk
Plating
Copper
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Series
AMPLIMITE HD-20
Shell Material
ZINC DIE CAST
Shell Size
B
Shielding
Shielded
Wire/Cable Diameter
11.94mm
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5748676-3 Datasheet
Download the complete datasheet for TE Connectivity 5748676-3 to view detailed technical specifications.
