80-position, 2-row right-angle cable plug connector with IDC termination. Features gold and tin plated bronze signal contacts, a steel shell, and a thermoplastic dielectric. Rated for 1A current and 30V AC/DC, with a temperature range of -55°C to 105°C. This shielded connector kit includes a black housing and is UL94 V-0 flammability rated.
Voltage Rating30V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 5749621-8 technical specifications.
General
Color
Black
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Type
Signal
Current Rating
1A
Depth
5.69mm
Dielectric Material
Thermoplastic
ELV
Compliant
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Insulation Diameter
0.91mm
Lead Free
Lead Free
Length
59.16mm
Material
Metal
Mating Connector Lock
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
30V
Mount
Free Hanging, Cable
Number of Contacts
80
Number of Ports
1
Number of Positions
80
Number of Rows
2
Orientation
Right Angle
Package Quantity
9
Packaging
Bulk
Pitch
0.05inch
Plating
Tin, Copper
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE .050 III
Shell Material
Steel
Shielding
Shielded
Termination
IDC
Voltage Rating
30V
Width
14.94mm
Wire/Cable Type
Round
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5749621-8 Datasheet
Download the complete datasheet for TE Connectivity 5749621-8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

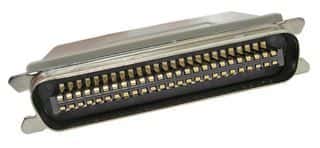

Product Images
