68-position, right-angle SCSI connector with IDC termination for round cable mounting. Features a steel body and shell, bronze contacts with gold and tin plating, and a thermoplastic dielectric. Rated for 1A current and 30V AC/DC, operating between -55°C and 105°C. This shielded connector offers a 0.05-inch pitch and is UL94 V-0 flammability rated.
Voltage Rating30V
Current Rating1A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 5749699-7 technical specifications.
General
| Body Material | Steel |
| Color | Black |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Contact Type | Signal |
| Current Rating | 1A |
| Dielectric Material | Thermoplastic |
| ELV | Compliant |
| Features | Shielded |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Housing Color | Black |
| Insulation Diameter | 0.89mm |
| Lead Free | Lead Free |
| Length | 51.54mm |
| Material | Metal |
| Mating Connector Lock | No (Without) |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 30V |
| Mount | Free Hanging, Cable |
| Number of Contacts | 68 |
| Number of Ports | 1 |
| Number of Positions | 68 |
| Number of Rows | 2 |
| Orientation | Right Angle |
| Package Quantity | 360 |
| Packaging | Bulk |
| Pitch | 0.05inch |
| Plating | Tin, Copper |
| Preloaded | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | AMPLIMITE .050 III |
| Shell Material | Steel |
| Shielding | Shielded |
| Termination | IDC |
| Voltage Rating | 30V |
| Width | 15.04mm |
| Wire/Cable Type | Round |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 5749699-7 Datasheet
Download the complete datasheet for TE Connectivity 5749699-7 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

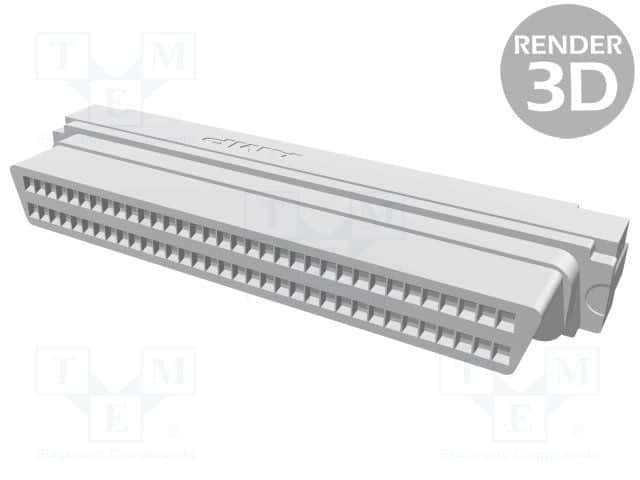

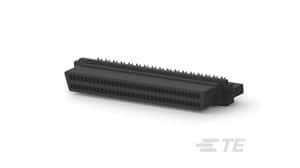

Product Images
