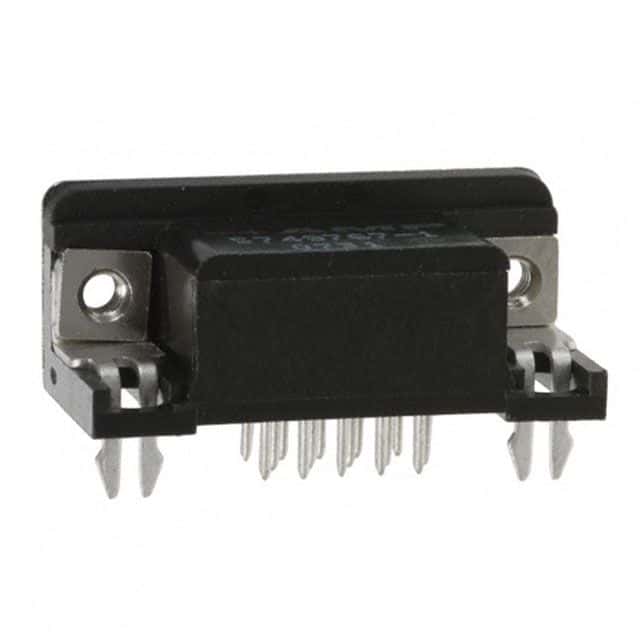

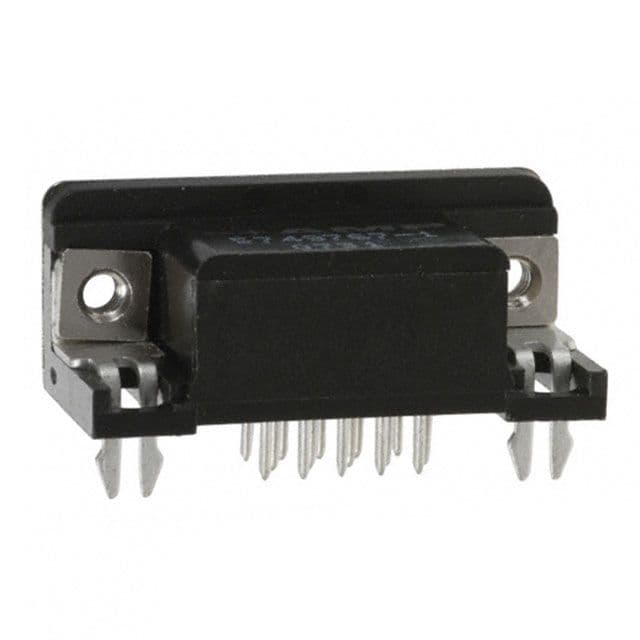

15 Pos D-Sub Connector, Male, 2A, 250V, RA, TH, Gold/Tin

TE Connectivity

5749767-1

Name: 5749767-1 TE Connectivity
Brand: TE Connectivity
SKU: 5749767-1

15 Pos D-Sub Connector, Male, 2A, 250V, RA, TH, Gold/Tin

High-density D-subminiature plug connector, male gender, featuring 15 signal contacts in 3 rows with a 2.29mm pitch. Right-angle, through-hole mounting orientation with solder termination. Metal shell with nickel plating, black housing, and bronze contacts plated with gold and tin. Rated for 2A current and 250V AC maximum operating voltage, with a temperature range of -55°C to 105°C. Includes mating alignment, connector lock, and retention features.

PackageMetal

Voltage Rating125V

Current Rating2A

MountingThrough Hole

Quick Jump:

Chat with Datasheet

Technical Specifications

TE Connectivity 5749767-1 technical specifications.

General

Approvals	UL, CSA
Body Material	Metal
Body Plating	Nickel
Package/Case	Metal
Color	Black
Contact Material	Bronze
Contact Plating	Gold, Tin
Contact Post Length	0.125inch
Contact Type	Signal
Current Rating	2A
Depth	20.8mm
Flammability Rating	UL94 V-0
Gender	Male
Height	12.5mm
Housing Color	Black
Length	30.81mm
Material	Metal
Mating Alignment	Yes (With)
Mating Connector Lock	Yes (With)
Mating Retention	Yes (With)
Max Current Rating	2A
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Supply Voltage (AC)	250V
Max Voltage Rating (AC)	250V
Mount	Through Hole
Number of Contacts	15
Number of Ports	1
Number of Positions	15
Number of Rows	3
Orientation	Right Angle
Package Quantity	100
Packaging	Box
PCB Mount Alignment	Yes (With)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	2.29mm
Plating	Nickel
Preloaded	Yes
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	AMPLIMITE HD-22
Shell Material	Steel
Shell Size	1
Termination	Solder
Voltage Rating	125V
Width	12.5mm
