40-position, 4-row right-angle receptacle assembly for telecom and datacom applications. Features steel housing with black thermoplastic dielectric, gold-plated bronze signal contacts with 0.1-inch post length, and a 0.05-inch pitch. Through-hole mount with PCB retention, shielded design, and solder termination. Operates within a -55°C to 105°C temperature range, rated for 30V, and compliant with RoHS and UL94 V-0 flammability.
Voltage Rating30V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5787170-4 technical specifications.
General
Body Material
Steel
Body/Shell Style
RECEPTACLE
Color
Black
Contact Material
Bronze
Contact Plating
Gold
Contact Post Length
0.1inch
Contact Type
Signal
Depth
16.76mm
Dielectric Material
Thermoplastic
ELV
Compliant
Features
Shielded
Flammability Rating
UL94 V-0
Gender
Female
Housing Color
Black
Lead Free
Lead Free
Length
46.1mm
Mating Alignment
No (Without)
Mating Retention
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole
Number of Contacts
40
Number of Ports
1
Number of Positions
40
Number of Rows
4
Orientation
Right Angle
Package Quantity
6
Packaging
Rail/Tube
PCB Mount Alignment
No (Without)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
0.05inch
Plating
Bright, Copper
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
AMPLIMITE .050 III
Shell Material
Steel
Shielding
Shielded
Termination
Solder
Voltage Rating
30V
Width
10.31mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5787170-4 Datasheet
Download the complete datasheet for TE Connectivity 5787170-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

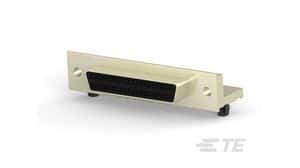

Product Images
