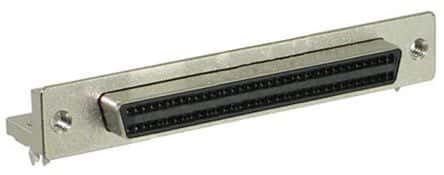

68 Pos Signal RCPT, Right Angle, Shielded, Through Hole, 1A, 30V

TE Connectivity

5787170-7

Name: 5787170-7 TE Connectivity
Brand: TE Connectivity
SKU: 5787170-7

Active

68 Pos Signal RCPT, Right Angle, Shielded, Through Hole, 1A, 30V

Shielded, right-angle receptacle assembly with 68 signal contacts and 68 positions. Features bronze contacts with gold, tin, and lead plating, mounted via through-hole, edge, or board termination. Constructed with a steel shell and body, housing a thermoplastic dielectric, and rated for 30V AC at 1A. Operating temperature range is -55°C to 105°C, with UL and UL94 V-0 flammability ratings.

Voltage Rating30V

MountingThrough Hole, Edge, Board

Quick Jump:

Pricing & Availability

Checking distributor stock and pricing after the page loads.

Chat with Datasheet

Technical Specifications

General

Approvals	UL
Body Material	Steel
Body Plating	Copper
Color	Black
Contact Material	Bronze
Contact Plating	Gold, Tin, Lead
Contact Post Length	0.1inch
Contact Type	Signal
Depth	16.76mm
Dielectric Material	Thermoplastic
Features	Shielded
Flammability Rating	UL94 V-0
Gender	Female
Height	10.31mm
Housing Color	Black
Length	63.88mm
Material	Metal
Mating Alignment	No (Without)
Mating Retention	No (Without)
Max Current Rating	1A
Max Operating Temperature	105°C
Min Operating Temperature	-55°C
Max Voltage Rating (AC)	30V
Mount	Through Hole, Edge, Board
Number of Contacts	68
Number of Ports	1
Number of Positions	68
Number of Rows	2
Orientation	Right Angle
Package Quantity	8
Packaging	Rail/Tube
PCB Mount Alignment	No (Without)
PCB Mount Retention	With
PCB Mounting Orientation	Right Angle
PCB Thickness	1.57mm
Pitch	0.05inch
Plating	Bright, Copper
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	AMPLIMITE .050 III
Shell Material	Steel
Shielding	Shielded
Strain Relief	Straight
Termination	Solder
Voltage Rating	30V
Width	10.31mm
