37-position, 2-row D-Subminiature plug connector for signal applications. Features brass male contacts with gold and tin plating, a metal shell, and through-hole mounting. Rated for 125V, with a maximum operating temperature of 105°C. Compliant with RoHS and UL standards, including UL94 V-0 flammability rating.
PackageMetal
Voltage Rating125V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5787686-1 technical specifications.
General
Approvals
UL
Body Material
Metal
Package/Case
Metal
Circuit Application
Signal
Color
Black
Contact Gender
Male
Contact Material
Brass
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Shape
Round
Contact Type
Signal
Depth
12.55mm
Dielectric Material
Polyester
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Housing Color
Black
Lead Free
Lead Free
Lead Length
3.175mm
Length
69.32mm
Material
Metal
Mating Connector Lock
No (Without)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
37
Number of Ports
1
Number of Positions
37
Number of Rows
2
Orientation
Straight
Package Quantity
7
Packaging
Rail/Tube
PCB Mount Retention
With
PCB Mounting Orientation
Vertical
PCB Thickness
1.57mm
Pitch
2.74mm
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
2.8448mm
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
C
Termination
Solder
Voltage Rating
125V
Width
12.55mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5787686-1 Datasheet
Download the complete datasheet for TE Connectivity 5787686-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

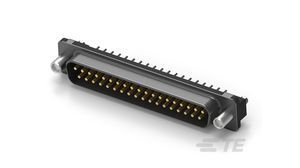

Product Images
