Right angle D-Subminiature connector, female, 25 positions, 2 rows, with signal contacts. Features copper alloy contacts with gold and tin plating, a steel shell and body, and a nylon dielectric. Rated for 6A current and 250V AC/DC, with a temperature range of -55°C to 105°C. Through-hole mounting with solder termination and right-angle PCB mounting orientation. Compliant with RoHS and UL94 V-0 flammability rating.
Voltage Rating125V
Current Rating6A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 5788800-1 technical specifications.
General
Body Material
Steel
Color
Black
Contact Material
Copper Alloy
Contact Plating
Gold, Tin
Contact Post Length
0.125inch
Contact Type
Signal
Current Rating
6A
Depth
18.8mm
Dielectric Material
Nylon
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Female
High Temperature Housing
Yes
Housing Color
Black
Length
53.03mm
Mating Alignment
Yes (With)
Mating Connector Lock
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Max Supply Voltage (AC)
250V
Max Supply Voltage (DC)
250V
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
250.25kV
Mount
Through Hole
Number of Contacts
25
Number of Ports
1
Number of Positions
25
Number of Rows
2
Orientation
Right Angle
Package Quantity
65
Packaging
Tray
PCB Mount Alignment
Yes (With)
PCB Mount Retention
With
PCB Mounting Orientation
Right Angle
PCB Thickness
1.57mm
Pitch
2.761mm
Plating
Tin
Preloaded
Yes
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
AMPLIMITE HD-20
Shell Material
Steel
Shell Size
3
Termination
Solder
Voltage Rating
125V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 5788800-1 Datasheet
Download the complete datasheet for TE Connectivity 5788800-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

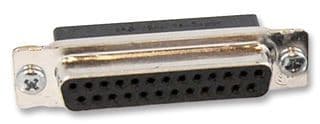

Product Images
