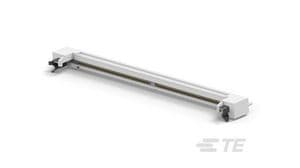

72-position straight SIMM socket with 2.54mm pitch, designed for signal applications. Features a liquid crystal polymer body, metal package, and bronze contacts with tin plating. Rated for 1A current and operates between -55°C and 105°C. Through-hole mounting with solder termination and a UL94 V-0 flammability rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 5822021-4 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Polymer, Liquid Crystal Polymer |
| Package/Case | Metal |
| Circuit Application | Signal |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Contact Post Length | 0.12inch |
| Current Rating | 1A |
| Depth | 8.51mm |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Height | 14.61mm |
| Housing Color | Natural |
| Insulation Material | Polymer |
| Lead Length | 3.048mm |
| Length | 115.57mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 105°C |
| Memory Type | RAM, |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Number of Contacts | 72 |
| Number of Positions | 72 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 315 |
| Packaging | Rail/Tube |
| Pitch | 0.05inch |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Micro-Edge |
| Termination | Solder |
| RoHS | Compliant |
