MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
TE Connectivity 6-1393224-2 technical specifications.
General
| Application(s) | POWER |
| Coil Current | 10.2mA |
| Coil Power | 300mW |
| Coil Resistance | 2.35kR |
| Coil Type | Non-Latching |
| Coil Voltage (DC) | 24V |
| Contact Current Rating | 8A |
| Contact Material | Tin, Silver |
| Contact Voltage Rating (AC) | 250V |
| Depth | 10.1mm |
| Height | 0.484inch |
| Length | 1.122inch |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole, PCB |
| Operate Time | 9ms |
| Package Quantity | 500 |
| Packaging | Rail/Tube |
| Relay Type | General Purpose |
| Release Time | 5ms |
| RoHS Compliant | Yes |
| Series | RY, SCHRACK |
| Termination | PCB |
| Throw Configuration | SPDT |
| Weight | 0.282oz |
| Width | 10.1mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 6-1393224-2 Datasheet
Download the complete datasheet for TE Connectivity 6-1393224-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

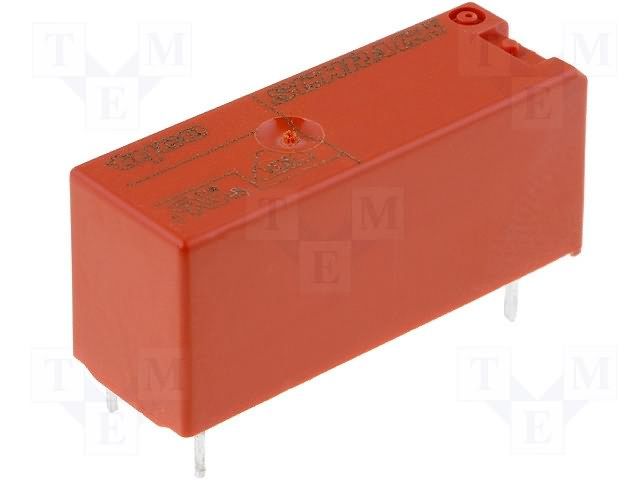

Product Images
