Male, straight, crimp-style pin contact for wire-to-wire connector systems. Designed for discrete wire, this signal and power contact supports 18-24 AWG wire gauges and features a 15A contact current rating. Constructed from brass with tin plating, it operates within a temperature range of -67°C to 221°C and has a voltage rating of 250V. This component is RoHS compliant.
Voltage Rating250V
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 60618-1 technical specifications.
General
Circuit Application
Power
Connector System
Wire-to-Wire
Contact Current Rating
15A
Contact Gender
Male
Contact Material
Brass
Contact Plating
Tin
Contact Shape
Round
Contact Style
Pin
Contact Type
Signal
Current Rating
13A
Depth
3.68mm
ELV
Compliant
Gender
Male
Height
3.81mm
Insulation Diameter
2.54mm
Lead Free
Lead Free
Length
20.44mm
Material
Brass
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Mount
Cable
Number of Positions
1
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
1000
Packaging
Bag
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Commercial MATE-N-LOK
Shielding
Unshielded
Termination
Crimp
VDE Tested
No
Voltage Rating
250V
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
24AWG
Wire/Cable Gauge
18AWG
Wire/Cable Type
Discrete
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 60618-1 Datasheet
Download the complete datasheet for TE Connectivity 60618-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

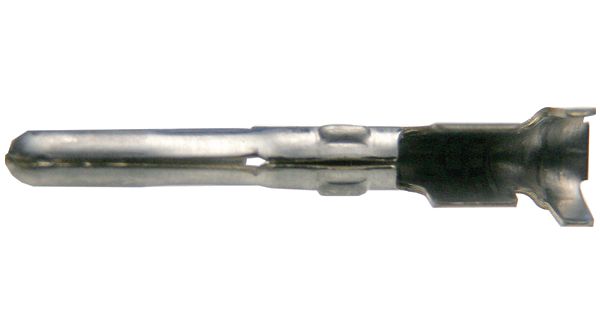

Product Images
