Female receptacle terminal with straight orientation, designed for 22-18 AWG wire. Features a brass body with tin plating and a clear nylon insulation. Mating tab width is 0.11 inches, with a maximum insulation diameter of 2.54mm. This insulated component offers support for wires and is RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 60894-1 technical specifications.
General
Body Material
Brass
Body Plating
Tin
Color
Clear, Natural
Contact Gender
Male
Contact Plating
Tin
Gender
Female
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Clear
Insulation Diameter
2.54mm
Insulation Material
Nylon
Length
0.734inch
Material
Brass
Mating Tab Width
0.11inch
Mount
Free Hanging
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Faston, PIDG
Terminal Material
Brass
Termination
Receptacle
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
22AWG
Wire/Cable Gauge
-18AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 60894-1 Datasheet
Download the complete datasheet for TE Connectivity 60894-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

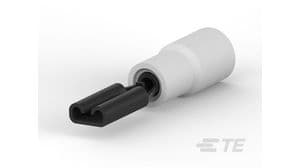

Product Images
