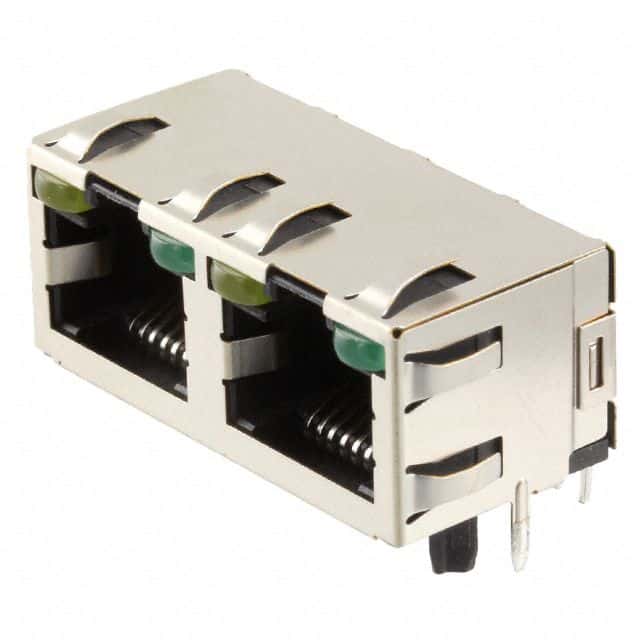

Shielded, right-angle RJ45 connector with 16 positions and 2 ports, designed for signal applications. Features gold and tin plated bronze contacts with a 1.5A current rating and 150V AC voltage rating. This component offers a 2.04mm pitch, 2.54mm tail length, and a UL94 V-0 flammability rating, operating between -40°C and 85°C. Termination is via solder, with a black housing and yellow/green color accents.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 6116353-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Circuit Application | Signal |
| Color | Yellow, Green |
| Contact Current Rating | 1.5A |
| Contact Material | Bronze |
| Contact Plating | Gold, Tin |
| Depth | 15.75mm |
| Direction | Up |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Keyed | No |
| Length | 33.27mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (AC) | 150V |
| Mount | Panel |
| Number of Contacts | 16 |
| Number of Ports | 2 |
| Number of Positions | 8 |
| Number of Positions Loaded | 16 |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Package Quantity | 72 |
| Packaging | Box |
| Pitch | 0.04inch |
| Plating Thickness | 1.27um |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Shielding | Shielded |
| Tail Length | 2.54mm |
| Termination | Solder |
| RoHS | Not CompliantNo |
