This quick disconnect terminal features a brass body with tin-plated contacts, designed for discrete wire applications. It supports wire gauges from 18AWG to 14AWG, accommodating a wire/cable diameter of 4.32mm. The terminal offers both female and male gender configurations with a 6.35mm mating tab width and 0.033mm tab thickness. Packaged on tape and reel for efficient assembly, this non-insulated terminal is RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 61944-1 technical specifications.
General
| Body Material | Brass |
| Contact Plating | Tin |
| Depth | 7.64mm |
| Gender | FEMALE AND MALE |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.17inch |
| Length | 0.77inch |
| Material | Brass |
| Mating Tab Width | 6.35mm |
| Mount | Free Hanging |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Plating | Unplated |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Faston |
| Tab Thickness | 0.033mm |
| Tab Width | 0.25mm |
| Terminal Material | Brass |
| Termination | Receptacle |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 18AWG |
| Wire/Cable Diameter | 4.32mm |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 61944-1 Datasheet
Download the complete datasheet for TE Connectivity 61944-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

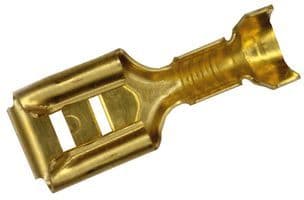

Product Images
