One-position, straight header receptacle with a natural nylon housing. Features a 6.35mm tab width and quick connect termination. Designed for free hanging or panel mounting, this female connector offers mating retention and is constructed from polyamide and nylon. It is RoHS compliant and lead-free.
Capacitance0F
MountingFree Hanging, Panel
Quick Jump:
Technical Specifications
TE Connectivity 626063 technical specifications.
General
| Body Material | Nylon |
| Capacitance | 0F |
| Color | Natural |
| Depth | 25.4mm |
| Gender | Female |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 25.43mm |
| Material | Polyamide, Nylon |
| Mating Retention | Yes (With) |
| Mount | Free Hanging, Panel |
| Number of Circuits | 1 |
| Number of Contacts | 1 |
| Number of Positions | 1 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 8000 |
| Packaging | Box |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Fastin-Faston |
| Tab Width | 6.35mm |
| Termination | Quick Connect |
| Width | 8.3mm |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 626063 Datasheet
Download the complete datasheet for TE Connectivity 626063 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

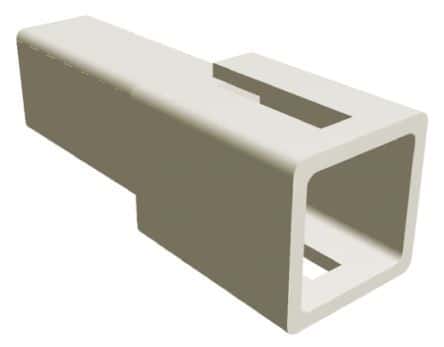

Product Images
