Female receptacle terminal for 14-18 AWG discrete wire, featuring a 6.35mm mating tab width and 19.18mm length. Constructed from brass with tin plating, this non-insulated terminal offers straight orientation and supports insulated wire. Designed for free-hanging mounting, it is supplied on tape and reel packaging.
Storage0.032inch
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 63306-2 technical specifications.
General
| Color | Red |
| Contact Plating | Tin |
| ELV | Compliant |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Insulation Diameter | 0.17inch |
| Lead Free | Lead Free |
| Length | 19.18mm |
| Material | Brass |
| Mating Tab Width | 6.35mm |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Faston |
| Size | 0.032inch |
| Terminal Material | Brass |
| Termination | Receptacle |
| Wire Gauge (Max) | 14AWG |
| Wire Gauge (Min) | 18AWG |
| Wire/Cable Diameter | 4.32mm |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 63306-2 Datasheet
Download the complete datasheet for TE Connectivity 63306-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

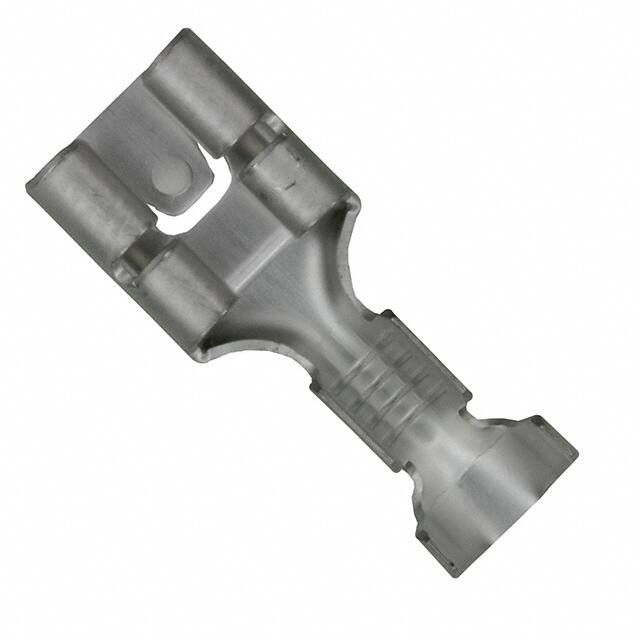

Product Images
