Male, non-insulated tab terminal for PCB mounting. Features brass body with copper plating and brass contacts with tin plating. Designed for straight orientation with a 4.75mm mating tab width and 0.83mm tab thickness. Supports wire gauges from 20AWG to 16AWG and is RoHS compliant. Packaged in tape and reel for efficient assembly.
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 63525-1 technical specifications.
General
| Body Material | Brass |
| Body Plating | Copper |
| Contact Material | Brass |
| Contact Plating | Tin |
| Depth | 7.11mm |
| ELV | Compliant |
| Gender | Male |
| Insulated Wire Support | Yes |
| Insulation | Non-Insulated |
| Lead Free | Lead Free |
| Length | 9.19mm |
| Material | Brass, Tin |
| Mating Tab Width | 4.75mm |
| Mount | Through Hole |
| Orientation | Straight |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| PCB Thickness | 0.125inch |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Faston |
| Tab Thickness | 0.83mm |
| Tab Width | 4.75mm |
| Terminal Material | Brass |
| Termination | Tab |
| Wire Gauge (Max) | 16AWG |
| Wire Gauge (Min) | 20AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 63525-1 Datasheet
Download the complete datasheet for TE Connectivity 63525-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

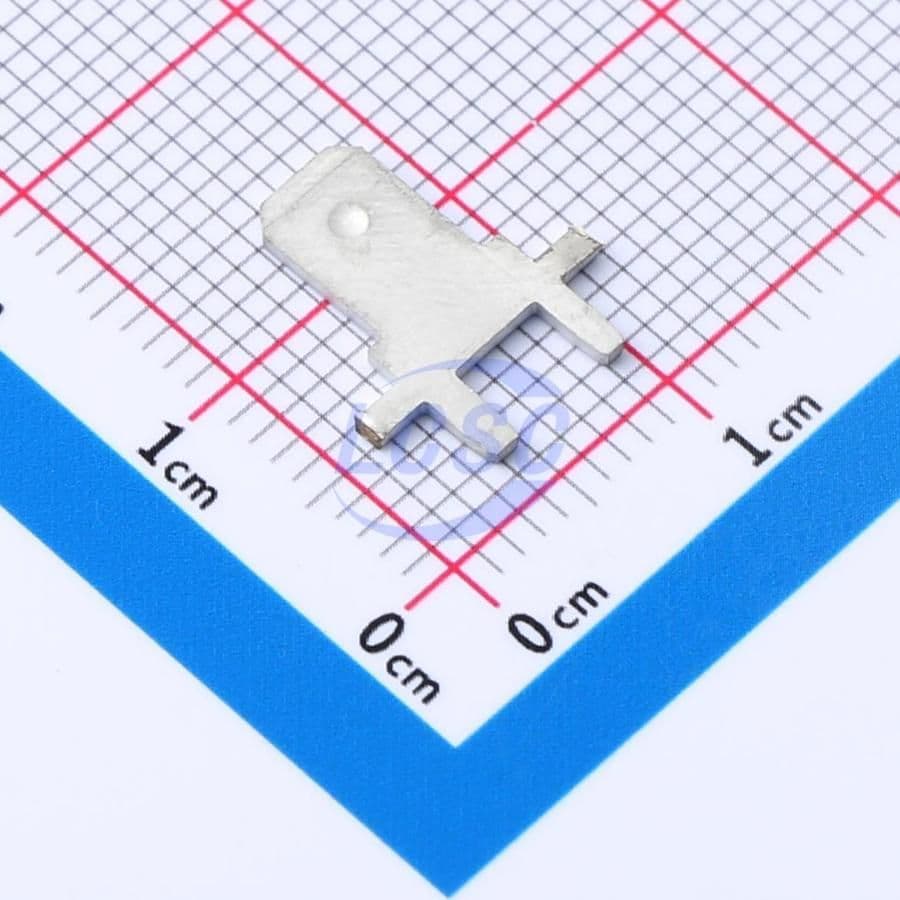

Product Images
