Right-angle, male RF coaxial connector with 50 Ohm impedance, designed for signal applications. Features a brass center contact with gold plating and a PBT body with tin plating. Maximum operating frequency is 3GHz, with a voltage rating of 335V and a maximum operating temperature of 85°C. This through-hole mount connector utilizes solder termination and is packaged in bulk.
Frequency3GHz
PackageSMB
Voltage Rating335V
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 638817-3 technical specifications.
General
Board Standoff
Yes (With)
Body Material
PBT
Body Plating
Tin
Package/Case
SMB
Center Contact Plating
Gold
Circuit Application
Signal
Connector System
Wire-to-Device
Contact Material
Brass
Contact Plating
Gold
Depth
8.1mm
Dielectric Material
PTFE
ELV
Compliant
Gender
Male
Height
0.423inch
Housing Color
Blue
Hybrid Connector
No
Impedance
50R
Insertion Loss
0.3dB
Lead Free
Lead Free
Length
23.8mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Frequency
3GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Through Hole
Number of Ports
1
Number of Positions
1
Orientation
Right Angle
Package Quantity
210
Packaging
Bulk
PCB Mount Retention
With
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Shielding
Unshielded
Termination
Solder
Voltage Rating
335V
Width
0.319inch
Wire/Cable Type
Coaxial
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 638817-3 Datasheet
Download the complete datasheet for TE Connectivity 638817-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

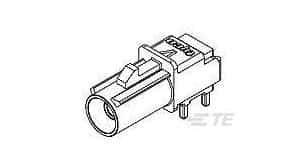

Product Images
