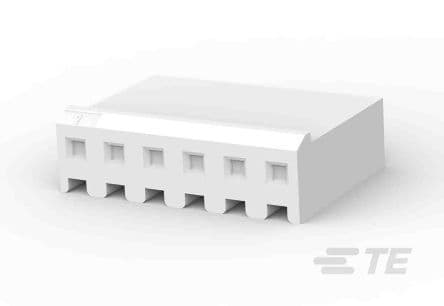

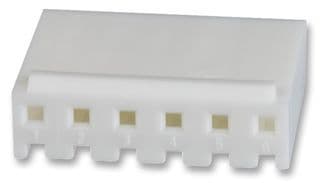

6 Pos 3.96mm Crimp Receptacle Housing, Wire-to-Board, 5A, 250V

TE Connectivity

640250-6

Name: 640250-6 TE Connectivity
Brand: TE Connectivity
SKU: 640250-6

6 Pos 3.96mm Crimp Receptacle Housing, Wire-to-Board, 5A, 250V

6-position, 1-row wire housing with a 3.96mm pitch, designed for wire-to-board applications. Features a straight, cable mount orientation and accepts 16-24 AWG wire. Offers a 5A current rating and a 250V voltage rating, with a maximum operating temperature of 221°C. Constructed from natural colored Nylon, this receptacle housing is RoHS compliant and UL94 V-0 flammability rated.

Voltage Rating250V

Current Rating5A

MountingFree Hanging, Cable, PCB

Quick Jump:

Technical Specifications

TE Connectivity 640250-6 technical specifications.

General

Approvals	CSA
Color	Natural
Connector System	Wire-to-Board
Contact Current Rating	6.5A
Contact Material	Bronze, CuSn
Contact Plating	Tin
Contact Retention	No (Without)
Contact Type	Female Socket
Current Rating	5A
Depth	16.76mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Height	6.35mm
Housing Color	Natural
Lead Free	Lead Free
Length	0.933inch
Material	Nylon
Mating Alignment	No (Without)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-67°C
Max Voltage Rating (AC)	250V
Mount	Free Hanging, Cable, PCB
Number of Contacts	6
Number of Positions	6
Number of Rows	1
Operating Supply Voltage	250V
Orientation	Straight
Package Quantity	1
Packaging	Bulk
PCB Mount Alignment	No (Without)
PCB Mount Retention	Without
Pitch	0.156inch
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	SL-156
Shrouded	No (Without)
Strain Relief	No (Without)
Termination	Crimp
Voltage Rating	250V
Width	7.27mm
Wire Gauge (Max)	24AWG
Wire Gauge (Min)	16AWG
Wire/Cable Gauge	24AWG
