Wire-to-Board Header, 4 Position, 2.54mm Pitch, Straight Solder Termination, Male Gender. Features a 5A contact current rating, copper alloy contacts with tin plating, and a 250V voltage rating. Designed for through-hole mounting with a vertical PCB mounting orientation. Compliant with RoHS and REACH SVHC standards, and rated UL94 V-0 for flammability. Operating temperature range from -67°C to 221°C.
Voltage Rating250V
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 640456-4 technical specifications.
General
Approvals
CSA
Backwall/Post Interruptions
No (Without)
Circuit Application
Signal
Color
Natural, Beige, White
Connector System
Wire-to-Board
Contact Current Rating
5A
Contact Gender
Male
Contact Material
Copper Alloy
Contact Mating Length
7.49mm
Contact Plating
Tin
Contact Post Length
3.56mm
Contact Retention
No (Without)
Contact Shape
Square
Contact Style
Straight
Current Rating
5A
Depth
5.72mm
Flammability Rating
UL94 V-0
Gender
Male
Height
7.87mm
Housing Color
Natural
Lead Free
Lead Free
Lead Pitch
2.54mm
Length
12.7mm
Mating Alignment
No (Without)
Mating Connector Lock
Yes (With)
Mating Retention
No (Without)
Max Operating Temperature
221°C
Min Operating Temperature
-67°C
Max Voltage Rating (AC)
250V
Mount
Through Hole
Mounting Ears
No (Without)
Number of Contacts
4
Number of Poles
4
Number of Positions
4
Number of Rows
1
Operating Supply Voltage
250V
Orientation
Straight
Package Quantity
5000
Packaging
Bulk
Panel Mount Retention
No (Without)
PCB Mount Alignment
No (Without)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
0.063inch
Pitch
2.54mm
Plating
Tin
Plating Thickness
3.81um
Radiation Hardening
No
Reach SVHC Compliant
Yes
RoHS Compliant
Yes
Sealable
No (Without)
Series
MTA-100
Shrouded
No (Without)
Strain Relief
No (Without)
Tail Length
0.14inch
Termination
Solder
Voltage Rating
250V
Voltage Rating (AC)
250V
DC Rated Voltage
250V
Weight
0.01411oz
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 640456-4 Datasheet
Download the complete datasheet for TE Connectivity 640456-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

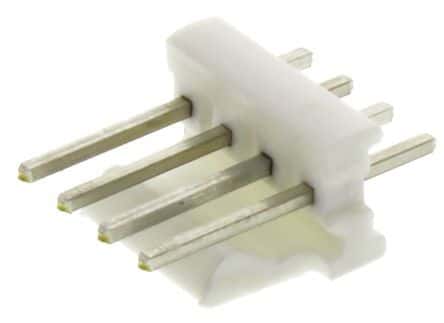

Product Images
