Eight-position, straight, cable mount wire housing connector for wire-to-wire applications. Features a 6.35mm pitch, 19A current rating, and 600V voltage rating. Constructed from white polyamide with tin-plated male contacts. Rated UL94 V-0 for flammability and compliant with RoHS.
Voltage Rating600V
Current Rating19A
MountingFree Hanging, Cable
Quick Jump:
Technical Specifications
TE Connectivity 640582-1 technical specifications.
General
| Approvals | CSA |
| Body/Shell Style | PLUG |
| Color | White, Beige |
| Connector System | Wire-to-Wire |
| Contact Gender | Male |
| Contact Plating | Tin |
| Contact Retention | No (Without) |
| Contact Type | Male or Female |
| Current Rating | 19A |
| Depth | 27.43mm |
| DIN Conformance | No |
| Empty Shell | Yes |
| Filter Feature | No |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Housing Color | White |
| IEC Conformance | No |
| Length | 52.07mm |
| Manufacturer Series | 640582 |
| Material | Nylon |
| Mating Information | MULTIPLE MATING PARTS AVAILABLE |
| Max Operating Temperature | 221°C |
| Max Voltage Rating (AC) | 600V |
| Max Voltage Rating (DC) | 600.6kV |
| MIL Conformance | No |
| Min Operating Temperature | -67°C |
| Mixed Contacts | No |
| Mount | Free Hanging, Cable |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Number of Rows | 1 |
| Option | General Purpose |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Pitch | 6.35mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Universal MATE-N-LOK |
| Shell Material | Polyamide |
| Termination | Crimp |
| VDE Tested | Yes |
| Voltage Rating | 600V |
| Width | 14.73mm |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 30AWG |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 640582-1 Datasheet
Download the complete datasheet for TE Connectivity 640582-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

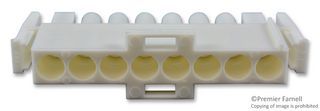

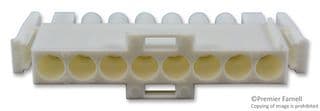

Product Images
