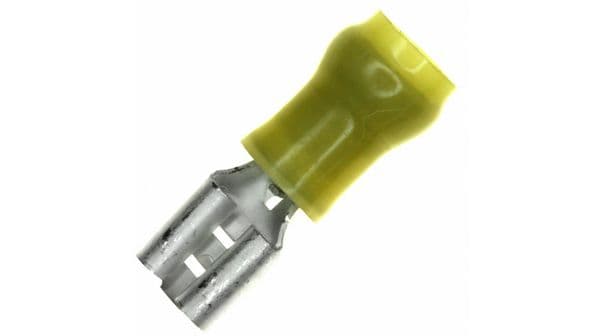

Female receptacle terminal for 10-12 AWG wire, featuring a brass body with tin plating and a yellow nylon insulation. This straight, free-hanging terminal has a mating tab width of 6.35mm and a voltage rating of 300V AC. Constructed with brass, tin, and copper contact materials, it offers insulated wire support and a tin finish.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 640907-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Brass |
| Body Plating | Tin |
| Color | Yellow |
| Contact Material | Brass, Tin, Copper |
| Contact Plating | Tin |
| Depth | 7.62mm |
| ELV | Compliant |
| Finish | Tin |
| Gender | Female |
| Insulated Wire Support | Yes |
| Insulation | Insulated |
| Insulation Color | Yellow |
| Insulation Diameter | 0.25inch |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 25.75mm |
| Material | Brass |
| Mating Tab Width | 6.35mm |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Loose Piece |
| Plating | Tin |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | Faston, PIDG |
| Size | 0.032inch |
| Terminal Material | Brass |
| Termination | Receptacle |
| Voltage Rating (AC) | 300V |
| Wire Gauge (Max) | 10AWG |
| Wire Gauge (Min) | 12AWG |
| RoHS | Compliant |
