Female receptacle terminal for 14-16 AWG wire, featuring a brass body with tin plating. This insulated terminal offers a 300V voltage rating and a straight, free-hanging orientation. The nylon insulation supports wire diameters up to 4.32mm, with a mating tab width of 5.21mm. Packaged as 1000 loose pieces, this component is RoHS and ELV compliant.
Storage0.02inch
Voltage Rating300V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 640913-1 technical specifications.
General
Body Material
Brass
Body Plating
Tin
Color
Blue
Contact Material
Brass, Tin
Contact Plating
Tin
Depth
6.35mm
ELV
Compliant
Gender
Female
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Diameter
4.32mm
Insulation Material
Nylon
Lead Free
Lead Free
Length
20.356mm
Manufacturer Series
640913
Material
Brass
Mating Tab Width
5.21mm
Mount
Free Hanging
Orientation
Straight
Package Quantity
1000
Packaging
Loose Piece
Plating
Tin
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Faston, PIDG
Size
0.02inch
Terminal Gender
Female
Termination
Receptacle
Voltage Rating
300V
DC Rated Voltage
300V
Width
6.35mm
Wire Gauge (Max)
16AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
-14AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 640913-1 Datasheet
Download the complete datasheet for TE Connectivity 640913-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

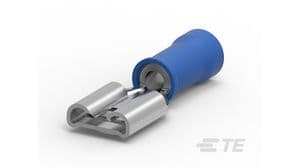

Product Images
