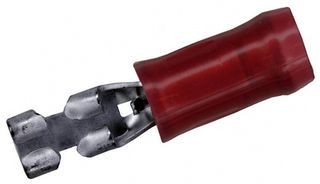

Female quick disconnect terminal for 18-22AWG wire, featuring a brass body with tin plating and a nylon insulation in red. This straight, free-hanging receptacle offers a 300V voltage rating and a mating tab width of 0.11 inches. Packaged on tape and reel, this component is RoHS compliant.
Storage0.032inch
Voltage Rating300V
MountingFree Hanging
Quick Jump:
Technical Specifications
TE Connectivity 640925-2 technical specifications.
General
Body Material
Brass
Body Plating
Tin
Color
Red
Contact Material
Brass
Contact Plating
Tin
Depth
4.06mm
ELV
Compliant
Gender
Female
Insulated Wire Support
Yes
Insulation
Insulated
Insulation Color
Red
Insulation Diameter
3.43mm
Insulation Material
Nylon
Lead Free
Lead Free
Length
20.356mm
Manufacturer Series
640925
Material
Brass
Mating Tab Width
0.11inch
Mount
Free Hanging
Orientation
Straight
Package Quantity
5000
Packaging
Tape and Reel
Plating
Tin
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Faston, PIDG
Size
0.032inch
Terminal Gender
Female
Terminal Material
Brass
Termination
Receptacle
Voltage Rating
300V
Width
4.06mm
Wire Gauge (Max)
22AWG
Wire Gauge (Min)
18AWG
Wire/Cable Gauge
18AWG
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 640925-2 Datasheet
Download the complete datasheet for TE Connectivity 640925-2 to view detailed technical specifications.
