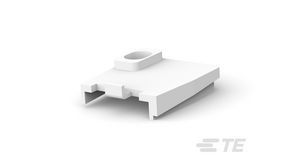

The 641763-1 is a 3-position connector with a maximum operating temperature of 120°C and a minimum operating temperature of -55°C. It is made of nylon and has a natural housing color. The connector is lead-free and RoHS compliant, meeting the requirements for ELV compliance. It has a pitch of 6.35mm and a length of 28.96mm, with a height of 8.38mm. The connector is suitable for use in a variety of applications, including those requiring high voltage ratings.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 641763-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 641763-1 technical specifications.
| Color | Natural |
| Contact Gender | Male |
| ELV | Compliant |
| Flammability Rating | UL94 V-2 |
| Height | 8.38mm |
| Housing Color | Natural |
| Lead Free | Lead Free |
| Length | 28.96mm |
| Material | Nylon |
| Max Operating Temperature | 120°C |
| Min Operating Temperature | -55°C |
| Number of Circuits | 3 |
| Number of Contacts | 3 |
| Number of Positions | 3 |
| Number of Ways | 3 |
| Package Quantity | 1 |
| Pitch | 6.35mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Universal MATE-N-LOK |
| Voltage Rating | 600V |
| RoHS | Compliant |
