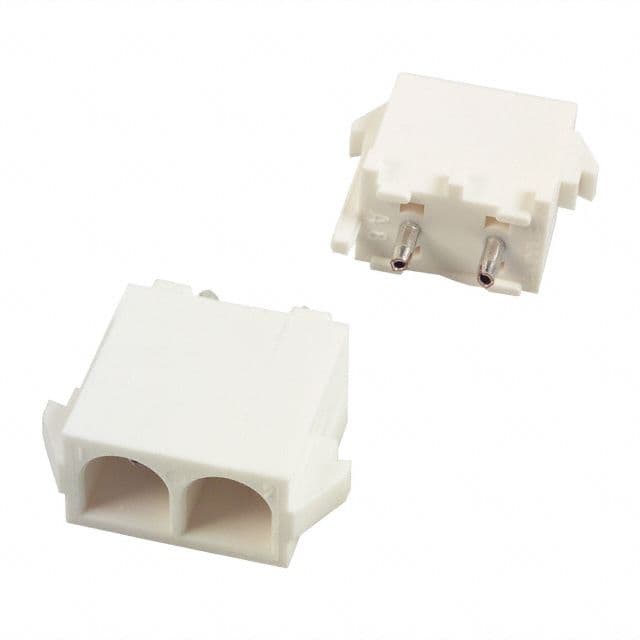

641964-1

2 Pos Power Connector, 19A, 600V, Straight, Solder, Thru-Hole

2-position, straight, wire-to-board power connector with a 6.35mm pitch. Features male pin contacts made of tin-plated bronze, rated for 19A and 600V AC. Through-hole mounting with vertical PCB orientation and a 2-circuit design. Housing is white, with a UL94 V-0 flammability rating and operating temperatures from -40°C to 221°C. CSA and VDE tested, RoHS compliant.

Voltage Rating600V

Current Rating19A

MountingThrough Hole

Quick Jump:

Technical Specifications

TE Connectivity 641964-1 technical specifications.

General

Approvals	CSA
Circuit Application	Power
Color	White, Beige
Connector System	Wire-to-Board
Contact Current Rating	12A
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Tin
Contact Retention	No (Without)
Contact Type	Male Pin
Current Rating	19A
Depth	7.62mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Height	14.73mm
Housing Color	White
Lead Free	Lead Free
Mating Alignment	Yes (With)
Mating Retention	Yes (With)
Max Operating Temperature	221°C
Min Operating Temperature	-40°C
Max Voltage Rating (AC)	600V
Mount	Through Hole
Number of Circuits	2
Number of Contacts	2
Number of Ports	1
Number of Positions	2
Number of Power Positions	2
Number of Rows	1
Orientation	Straight
Package Quantity	100
Packaging	Bag
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	3.12mm
Pitch	6.35mm
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No (Without)
Series	Universal MATE-N-LOK
Strain Relief	No (Without)
Termination	Solder
VDE Tested	Yes
Voltage Rating	600V
