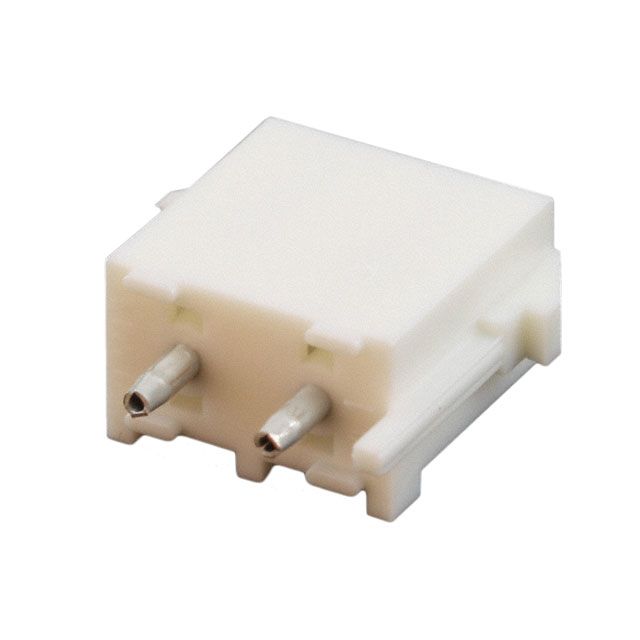

2-position, 1-row wire-to-board connector with male pin contacts. Features a 6.35mm pitch, 12A contact current rating, and 19A overall current rating. Constructed with bronze contacts plated in gold and tin, housed in white UL94 V-0 rated plastic. Rated for 600V AC, operates between -40°C and 221°C, and is suitable for through-hole mounting with solder termination.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 641964-3 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
White
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Gender
Male
Contact Material
Bronze
Contact Plating
Gold, Tin
Contact Retention
No (Without)
Contact Type
Male Pin
Current Rating
19A
ELV
Compliant
Flammability Rating
UL94 V-0
Housing Color
White
Lead Free
Lead Free
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Mount
Through Hole
Number of Circuits
2
Number of Contacts
2
Number of Positions
2
Number of Power Positions
2
Number of Rows
1
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Alignment
Yes (With)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
3.12mm
Pitch
6.35mm
Radiation Hardening
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Compliance
RoHS
Compliant
