6-circuit, 2-row wire-to-board power connector with a 6.35mm pitch. Features female socket contacts with a 12A contact current rating and tin plating. Rated for 600V AC/DC, this straight, through-hole mounted connector offers 6 power positions and a 19A current rating. Constructed with a nylon insulation material and a UL94 V-0 flammability rating, it operates within a -40°C to 221°C temperature range.
Voltage Rating600V
Current Rating19A
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 643424-1 technical specifications.
General
Approvals
CSA
Circuit Application
Power
Color
Beige
Connector System
Wire-to-Board
Contact Current Rating
12A
Contact Finish - Mating
TIN
Contact Gender
Female
Contact Material
Bronze
Contact Plating
Tin
Contact Retention
No (Without)
Contact Shape
Circular
Contact Type
Female Socket
Current Rating
19A
Depth
13.97mm
ELV
Compliant
Flammability Rating
UL94 V-0
Gender
Male
Height
13.97mm
Housing Color
White
Insulation Color
Natural
Insulation Material
Nylon
Lead Free
Lead Free
Length
20.32mm
Mating Alignment
Yes (With)
Mating Retention
Yes (With)
Max Operating Temperature
221°C
Min Operating Temperature
-40°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
600.6kV
Mount
Through Hole
Number of Circuits
6
Number of Contacts
6
Number of Ports
1
Number of Positions
6
Number of Power Positions
6
Number of Rows
2
Orientation
Straight
Package Quantity
100
Packaging
Bag
PCB Mount Alignment
Yes (With)
PCB Mount Retention
Without
PCB Mounting Orientation
Vertical
PCB Thickness
3.18mm
Pitch
6.35mm
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Row Spacing
0.25mm
Sealable
No (Without)
Series
Universal MATE-N-LOK
Strain Relief
No (Without)
Termination
Solder
VDE Tested
Yes
Voltage Rating
600V
Width
20.32mm
Compliance
RoHS
Compliant
Datasheet
TE Connectivity 643424-1 Datasheet
Download the complete datasheet for TE Connectivity 643424-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

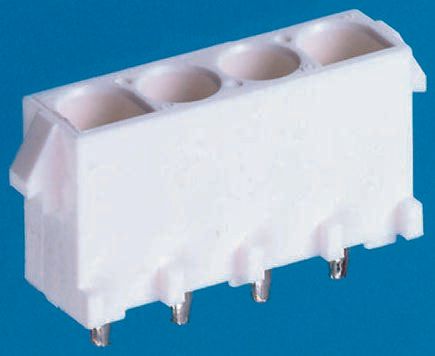

Product Images
