20-position, single-row shrouded header with 2.54mm pitch, designed for through-hole mounting. Features female bronze contacts with tin plating for both mating and termination, ensuring reliable connections. Constructed with black thermoplastic insulation and a SIP package, this component operates within a temperature range of -55°C to 105°C and meets UL94 V-0 flammability standards. Ideal for SIP20 device applications, it is lead-free and RoHS compliant.
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
TE Connectivity 643652-3 technical specifications.
General
| Package/Case | SIP |
| Color | Black |
| Contact Finish - Mating | TIN |
| Contact Finish - Termination | TIN |
| Contact Gender | Female |
| Contact Material | Bronze |
| Contact Plating | Tin |
| Depth | 3.91mm |
| Device Type Used On | SIP20 |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Female |
| Insulation Material | Thermoplastic |
| Lead Free | Lead Free |
| Length | 50.67mm |
| Manufacturer Series | 643652 |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -55°C |
| Mount | Through Hole |
| Mounting Style | STRAIGHT |
| Number of Contacts | 20 |
| Number of Positions | 20 |
| Number of Rows | 1 |
| Orientation | Straight |
| Package Quantity | 400 |
| Packaging | Tray |
| Pitch | 2.54mm |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Diplomate DL |
| Termination | Solder |
| Type | Integrated Circuit (IC) |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 643652-3 Datasheet
Download the complete datasheet for TE Connectivity 643652-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

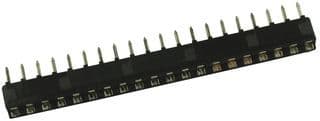

Product Images
