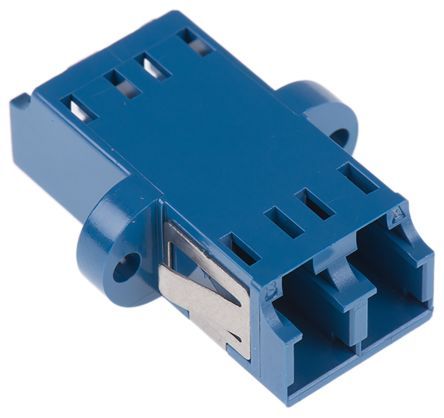

Duplex LC fiber optic adapter for singlemode applications, featuring a blue thermoplastic body and ceramic ferrule. This panel-mount connector offers straight orientation with a snap-in mounting style and flanges, boasting an insertion loss of 0.2dB. Operating within a temperature range of -40°C to 75°C, it is UL94 V-0 flammability rated and RoHS compliant.
PackageCeramic
MountingPanel, Snap in, Flanges
Quick Jump:
Technical Specifications
TE Connectivity 6457567-4 technical specifications.
General
| Body Material | Thermoplastic |
| Package/Case | Ceramic |
| Color | Blue |
| Connector Type A | LC |
| Connector Type B | LC |
| Depth | 9.3mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Height | 22.1mm |
| Housing Color | Blue |
| Insertion Loss | 0.2dB |
| Lead Free | Not Applicable |
| Length | 29.2mm |
| Max Operating Temperature | 75°C |
| Min Operating Temperature | -40°C |
| Mode | Singlemode |
| Mount | Panel, Snap in, Flanges |
| Orientation | Straight |
| Package Quantity | 10 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Simplex/Duplex | Duplex |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 6457567-4 Datasheet
Download the complete datasheet for TE Connectivity 6457567-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
