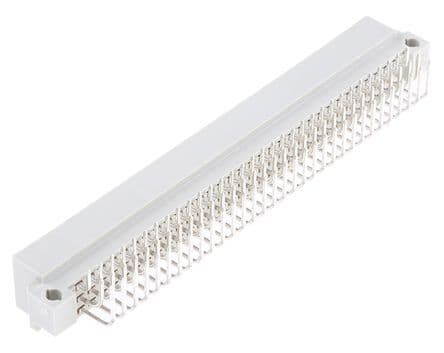

96-position, 3-row right-angle male header for board-to-board applications. Features brass contacts with tin, lead, and gold plating, a 2.54mm pitch, and a 1.5A current rating. Through-hole mounting with a 250V voltage rating and a maximum operating temperature of 125°C. UL and CSA approved, with a UL94 V-0 flammability rating and glass insulation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 650947-5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Approvals | UL, CSA |
| Color | Grey |
| Contact Material | Brass |
| Contact Plating | Tin, Lead, Gold |
| Current Rating | 1.5A |
| Depth | 17.73mm |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 11.1mm |
| Housing Color | Grey |
| Insulation Material | Glass |
| Lead Free | Lead Free |
| Length | 94mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 96 |
| Number of Positions | 96 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 30 |
| Packaging | Bulk |
| Pitch | 2.54mm |
| RoHS Compliant | No |
| Series | Eurocard |
| Shell Size | C |
| Termination | Solder |
| Voltage Rating | 250V |
| RoHS | Not Compliant |
