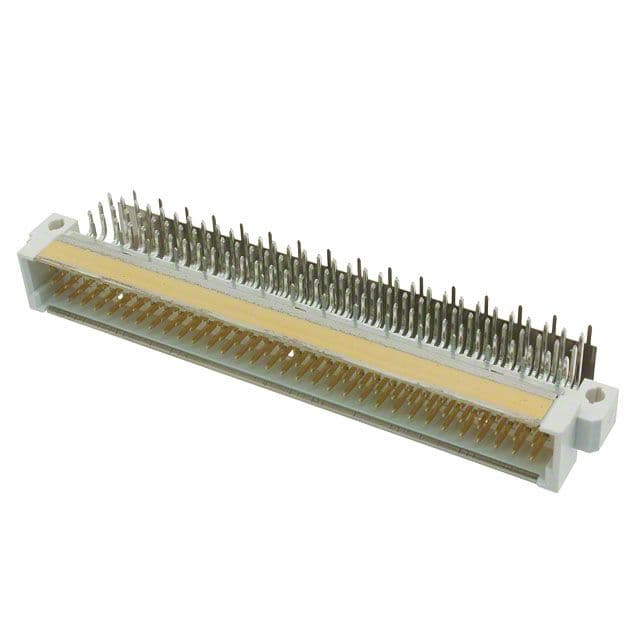

96-position, 3-row male header for board-to-board applications. Features a 2.54mm pitch, 12.7mm height, and 93.98mm length with a right-angle orientation for through-hole mounting. Brass contacts with gold plating ensure reliable conductivity, and the polymer housing is UL94 V-0 rated for flammability. Offers mating alignment and retention, with a maximum operating temperature of 125°C and a voltage rating of 250V AC.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 650987-5 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Connector System | Board-to-Board |
| Contact Material | Brass |
| Contact Plating | Gold |
| Contact Post Length | 2.65mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Gender | Male |
| Height | 12.7mm |
| Housing Color | Grey |
| Insulation Material | Polymer |
| Lead Free | Contains Lead |
| Length | 93.98mm |
| Make First / Break Last | No |
| Mating Alignment | Yes (With) |
| Mating Retention | Yes (With) |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Through Hole |
| Number of Contacts | 96 |
| Number of Positions | 96 |
| Number of Rows | 3 |
| Orientation | Right Angle |
| Package Quantity | 21 |
| Packaging | Box |
| PCB Mount Retention | Without |
| PCB Mounting Orientation | Right Angle |
| Pitch | 2.54mm |
| RoHS Compliant | No |
| Series | Eurocard |
| Shielding | Shielded |
| Termination | Solder |
| RoHS | Not Compliant |
