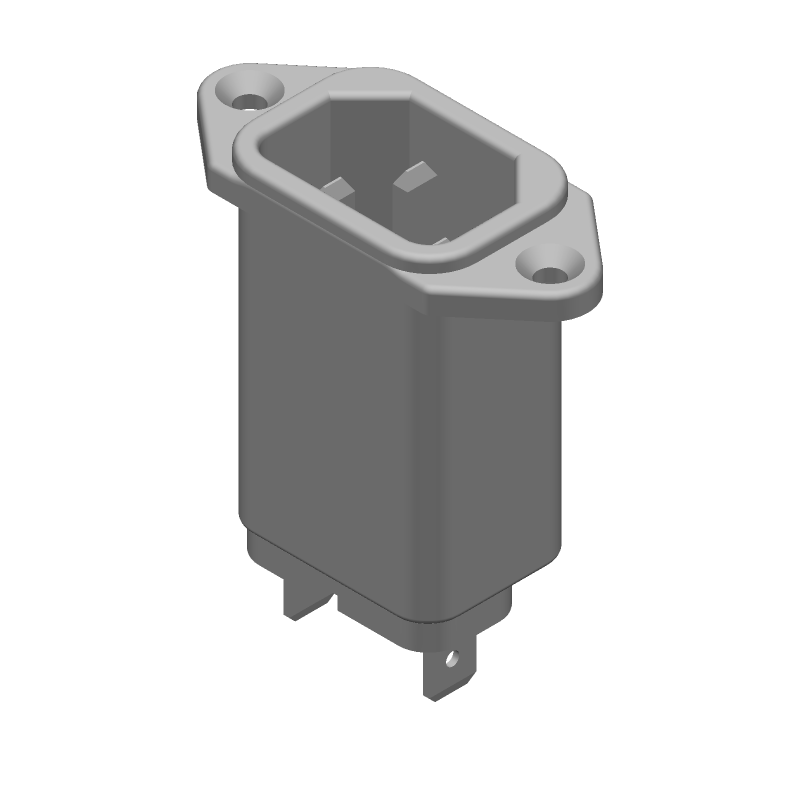

This 3-position power connector is designed for AC applications, with a maximum current rating of 1A and a maximum voltage rating of 250V AC. It operates within a temperature range of -10°C to 40°C and is compliant with ELV and RoHS regulations. The connector is available in bulk packaging and features a quick connect termination.
Frequency50,60 Hz
Current1A
Current Rating1A
MountingPanel, Flanges
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the TE Connectivity 6609001-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
TE Connectivity 6609001-1 technical specifications.
General
| Application(s) | AC |
| Current | 1A |
| Current Rating | 1A |
| ELV | Compliant |
| Lead Free | Lead Free |
| Leakage Current | 220uA |
| Length | 50.3mm |
| Max Current Rating | 1A |
| Max Operating Temperature | 40°C |
| Min Operating Temperature | -10°C |
| Max Voltage Rating (AC) | 250V |
| Mount | Panel, Flanges |
| Number of Positions | 3 |
| Operating Frequency | 50,60 Hz |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | EEB, Corcom |
| Termination | Quick Connect |
Compliance
| RoHS | Compliant |
