Female signal contact for cable mounting, featuring a straight orientation and crimp termination. Designed for 16-18 AWG discrete wire, this brass contact offers gold and tin plating for enhanced conductivity and durability. It supports a current rating of 13A and is RoHS compliant.
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 66101-4 technical specifications.
General
| Circuit Application | Signal |
| Contact Gender | Female |
| Contact Material | Brass |
| Contact Plating | Gold, Tin |
| Contact Type | Signal |
| Current Rating | 13A |
| Depth | 3.68mm |
| ELV | Compliant |
| Gender | Female |
| Height | 3.05mm |
| Insulation Diameter | 0.1inch |
| Lead Free | Lead Free |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Loose Piece |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Multimate III+ |
| Shielding | Unshielded |
| Strain Relief | No (Without) |
| Termination | Crimp |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 16AWG |
| Wire/Cable Gauge | 16AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 66101-4 Datasheet
Download the complete datasheet for TE Connectivity 66101-4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

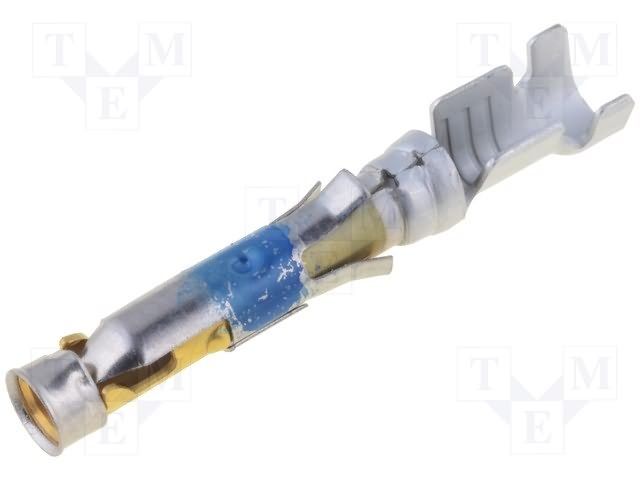

Product Images
