Male, straight, solder termination power contact for signal applications. Features a copper alloy pin with 30µin gold plating over nickel underplate, rated for 13A maximum current. Operates within a temperature range of -55°C to 125°C and supports wire gauges from 20AWG to 26AWG. This component is RoHS compliant and lead-free.
Current Rating13A
MountingCable
Quick Jump:
Technical Specifications
TE Connectivity 66182-1 technical specifications.
General
| Circuit Application | Signal |
| Contact Gender | Male |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Contact Style | Pin |
| Contact Type | Power |
| Current Rating | 13A |
| Depth | 3.7mm |
| ELV | Compliant |
| Gender | Male |
| Height | 3mm |
| Lead Free | Lead Free |
| Length | 29.4mm |
| Max Current Rating | 13A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Cable |
| Orientation | Straight |
| Package Quantity | 1000 |
| Packaging | Carton |
| Plating Thickness | 250nm |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | Multimate III+ |
| Termination | Solder |
| Underplate Material | Nickel |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 20AWG |
| Wire/Cable Gauge | 20AWG |
| Wire/Cable Type | Discrete |
Compliance
| RoHS | Compliant |
Datasheet
TE Connectivity 66182-1 Datasheet
Download the complete datasheet for TE Connectivity 66182-1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

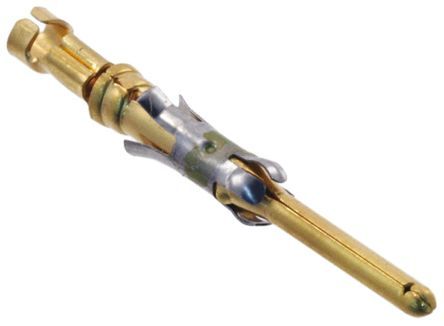

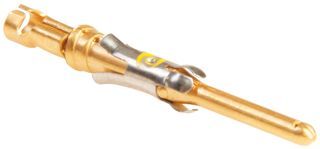

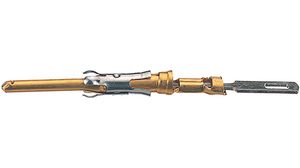

Product Images
