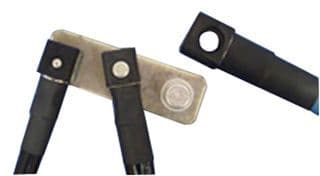

Signal and power contact pin for wire-to-bus bar connector systems. Features a gold-plated copper alloy contact with a 115A current rating and 0.25um plating thickness. Designed for right-angle cable mounting with a 6AWG wire/cable gauge. Constructed with a black thermoplastic insulator and exhibits UL94 V-0 flammability rating.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the TE Connectivity 6648239-1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
TE Connectivity 6648239-1 technical specifications.
| Color | Black |
| Connector System | Wire-to-Bus Bar |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 115A |
| Depth | 12.7mm |
| ELV | Compliant |
| Flammability Rating | UL94 V-0 |
| Housing Color | Black |
| Insulation Material | Thermoplastic |
| Lead Free | Not Applicable |
| Length | 27.39mm |
| Max Current Rating | 115A |
| Mount | Cable |
| Number of Contacts | 1 |
| Number of Ports | 1 |
| Orientation | Right Angle |
| Packaging | Bulk |
| PCB Mounting Orientation | Right Angle |
| Plating Thickness | 0.25um |
| Radiation Hardening | No |
| Series | Rapid Lock |
| Termination | Crimp |
| Width | 0.5inch |
| Wire/Cable Gauge | 6AWG |
| RoHS | Compliant |
